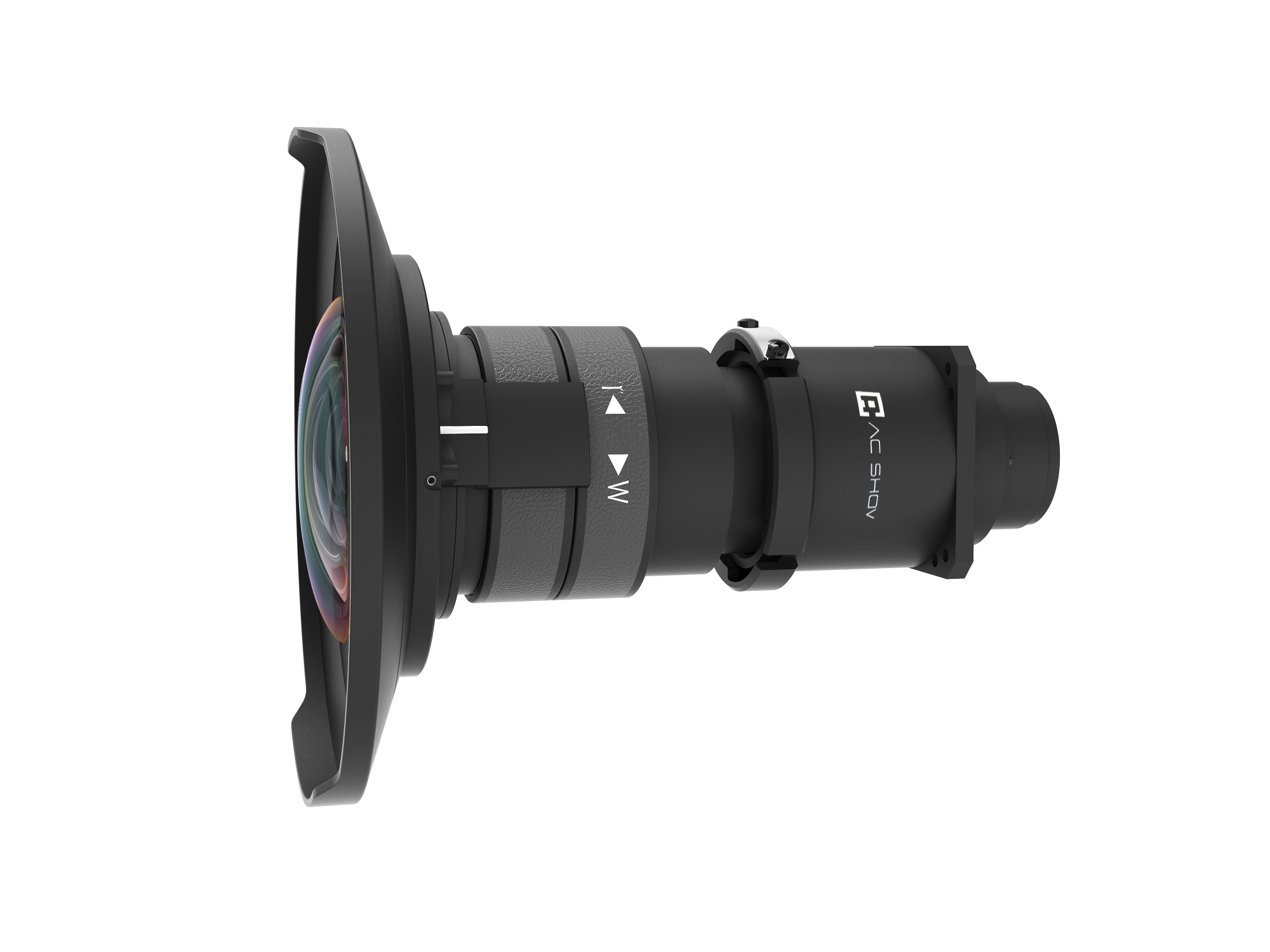

AC SHOW 0.31-0.32:1/0.3-0.34:1/0.35-0.39:1/0.37-0.4:1/0.5-0.55:1 Short Zoom Lens

AC SHOW UST LENS - ACOU , Throw Ratios : 0.31-0.32:1/0.3-0.34:1/0.35-0.39:1/0.37-0.4:1/0.5-0.55:1
	Optical Component				Optical glass & Imported Aspheric Surface
	Throw Ratio	Chip	Supported Resolution	Fixed / Zoom	Lens Uniformity	Lens Size （LxWxH mm）	Lens Net Weight (N.W.)	Lens Package
	0.37-0.34:1	3LCD 0.63'' 3LCD 0.64''	WUXGA 1920x1200 16:10  4K UHD 3840x2160	Zoom	85%	168x168x200	1.2 KG	Carton  (Contain double-layer pearl foam cotton)
	0.3-0.34:1	3LCD 0.76'' 3LCD 0.79"			91%
	0.31-0.32:1	DMD 0.8"			96%
	0.35-0.39:1	DMD 0.65" DMD 0.66" DMD 0.67"			90%
	0.5-0.55:1	DMD 0.47" DMD 0.48"			93%

1. Because the projectors and lens parts contain precision parts, please don't vibrate or overload the projector or lens part violently.
2. When transporting a projector with a lens, the lens needs to be removed before transportation. Improper handling during transportation may damage the lens and lens displacement system.
3. Before removing or installing the lens, ensure to turn off the projector, wait until the cooling fan stops, and unplug the power cord.
4. Please don't touch the lens surface when removing or installing the lens.
5. To prevent fingerprints, dust or oil from adhering to the lens surface , please don't scratch the lens surface.
6. When using the lens part , set the shift to the center of the screen.
7. Adjusting the lens displacement to a position other than the  center position may make the edge of the image dim or cause black shadows. Please adjust the shift to avoid black shadows.
